TB6600 Microstep Stepper Motor Driver (4A)

TB6600 Microstep Stepper Motor Driver (4A)

Power your high-torque stepper motors with the robust and reliable TB6600 Microstep Stepper Motor Driver. This professional-grade driver is an excellent choice for building powerful CNC machines, 3D printers, and other automation systems that require high precision and current. It’s a significant upgrade from smaller “stepstick” drivers, capable of handling larger motors like NEMA 17, NEMA 23, and NEMA 34.

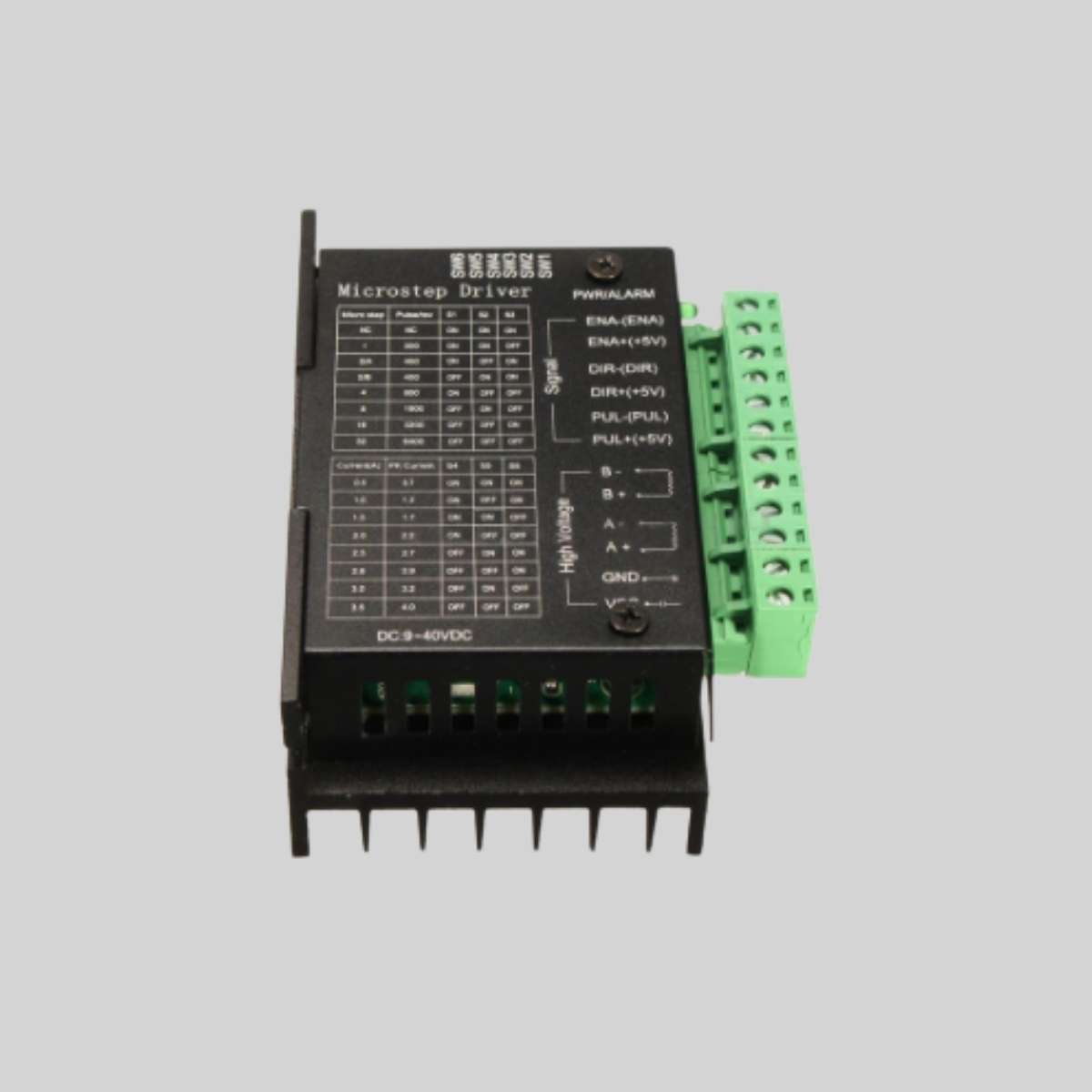

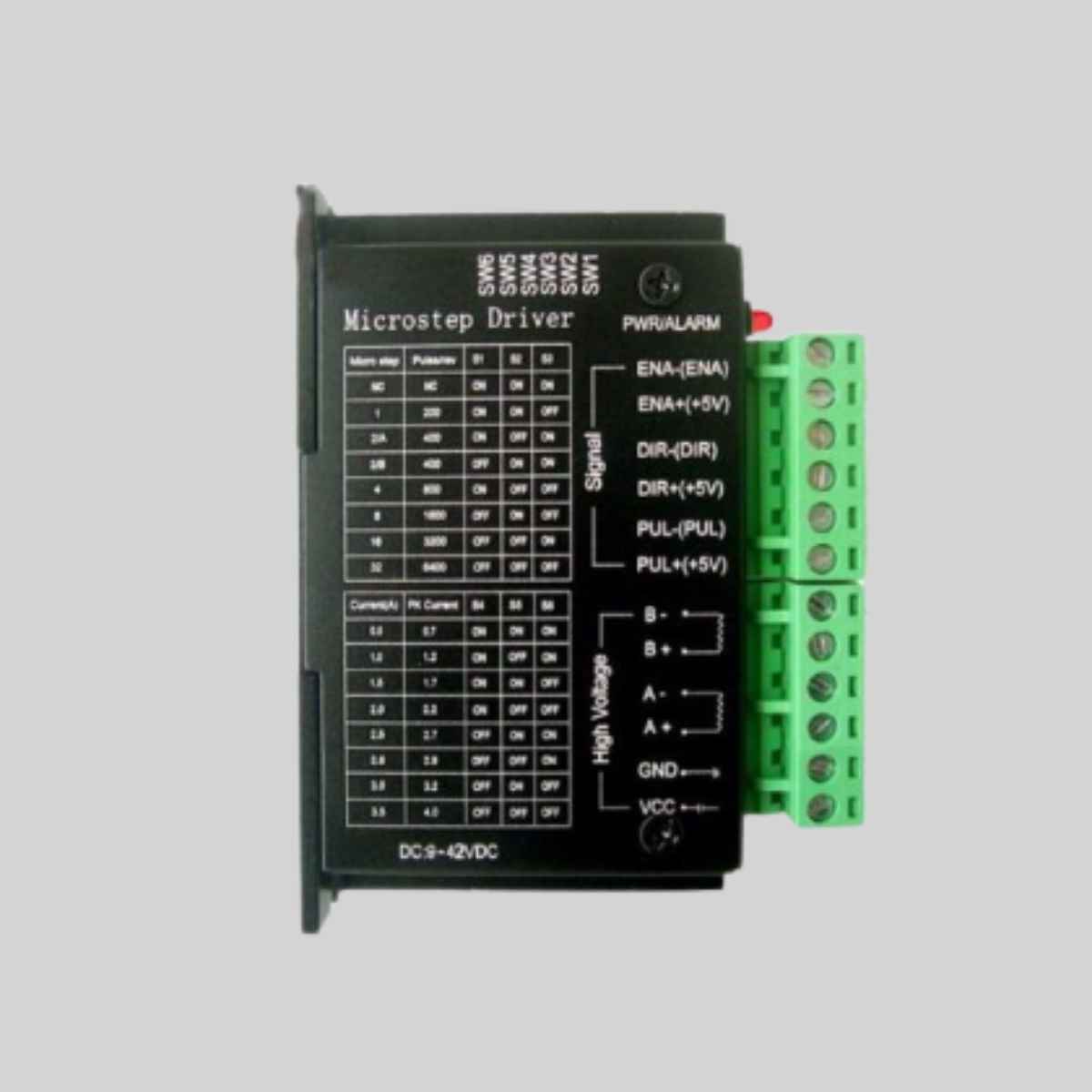

The TB6600 is designed for simplicity and power. Instead of complex programming, all configurations for microstepping and current output are set using easy-to-use physical DIP switches on the side of the unit, with a clear reference table printed on the case. This allows you to quickly set up and tune the driver for optimal performance with your specific motor.

With a wide input voltage range and an adjustable current output of up to 4.0A, this driver can get the most out of your stepper motors. The enclosed aluminum alloy casing acts as a large heatsink, ensuring excellent heat dissipation for stable, long-term operation.

Key Features:

• Driver Chip: Upgraded TB6600
• Input Voltage: 9V to 42V DC
• Output Current: Adjustable from 0.5A to 4.0A (Peak)
• Motor Compatibility: 2/4-phase bipolar stepper motors (NEMA 17, 23, 34)
• Microstepping Control: Selectable resolutions via DIP switch (Full, 1/2, 1/4, 1/8, 1/16)
• Opto-isolated Inputs: Protects your controller from high-voltage spikes
• Protection: Features over-heating, over-current, and under-voltage protection
• Durable Enclosure: Aluminum alloy case for superior cooling and durability

Applications:

The TB6600 is the ideal driver for demanding motion control systems, including CNC routers, plasma cutters, laser engraving/cutting machines, robotic arms, pick-and-place machines, and custom automation equipment.
